MV OFF-LOAD DISCONNECTOR OUTDOOR TYPE
MV Off-Load Disconnector Outdoor Type
Disconnectors are devices that can be opened and closed when the circuit is off-load in medium and high voltage systems. There are two types, indoor and outdoor. They are divided into four categories as normal, grounded, fused and fused grounded. Disconnectors are three-pole and all poles are controlled by a common operating mechanism and they can be mounted on a wall or on a vertical plane.
Disconnectors can be opened and closed under voltage, they cannot be opened and closed under load.
They are divided into two groups as porcelain and silicone insulators.
POREL branded disconnectors comply with the TS EN 62271-102 standard and are manufactured in accordance with ISO 9001-2008.

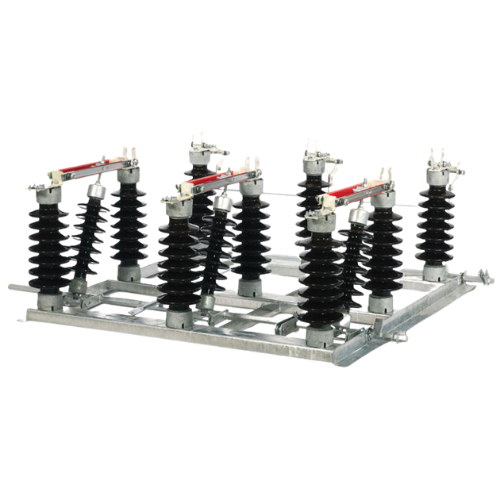

Outdoor Type Disconnector with Porcelain Insulator

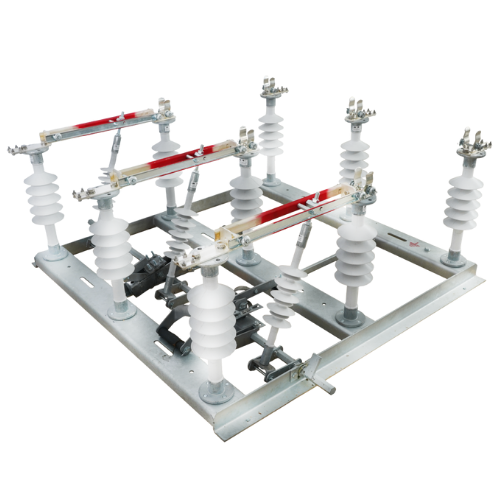

Outdoor Type Disconnector with Silicone Insulator
