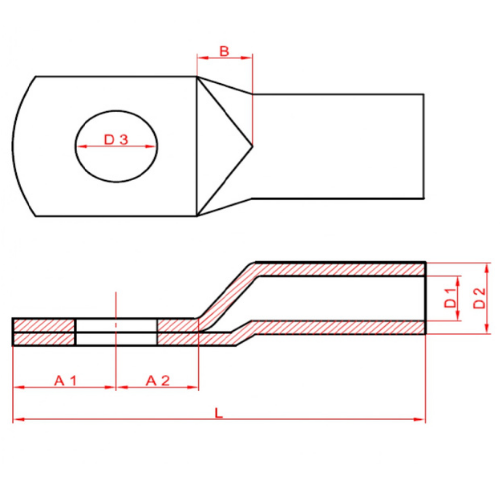

KOMPRESNE KABLOVNE PAPUČICE (CCL)
Altınsoy cable lugs are designed on the basis of perfect conductivity, maximum resistance to conditions, minimum arc and maximum cable distance. Our products have proven their quality outdoors with the TSE documents they have received and the accredited type tests they have passed. Our products are divided into 3 groups such as Al-Cu (Bimetal) CCL, Copper CCL and “EKMUF (CONNECTOR)” which enables the joining of cables.
Our products are certified in accordance with the TS EN 61238-1-1, TS EN 61238-1-3 standards and have type test reports from an accredited laboratory.
The list of products we manufacture is given below.

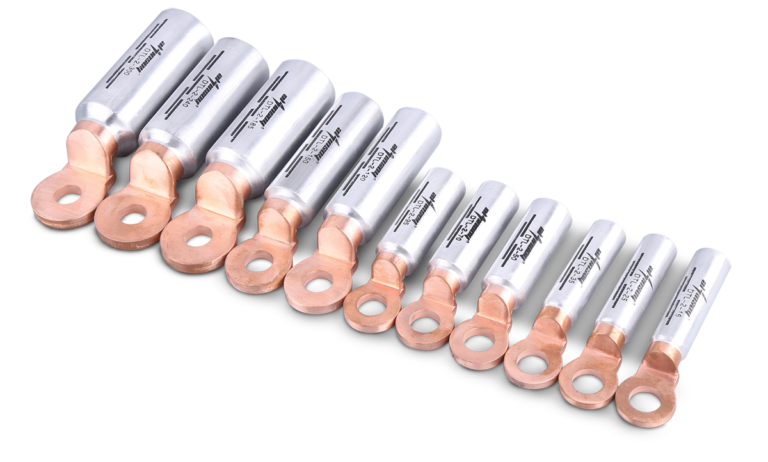

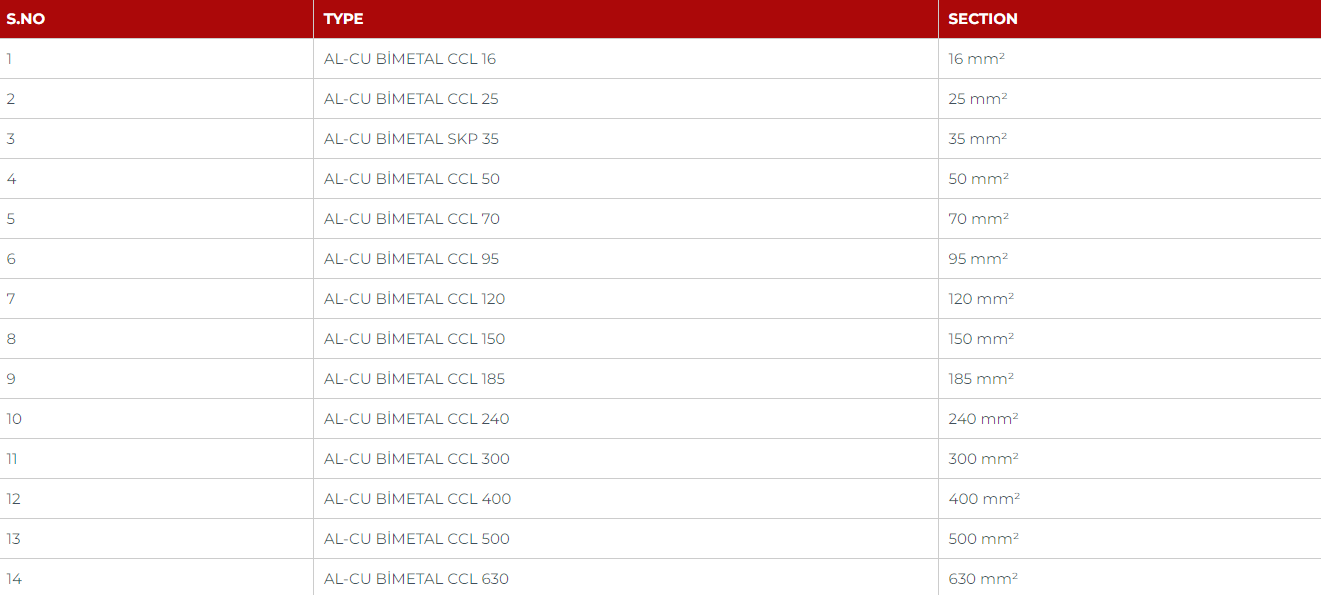

Al-Cu (Bimetal) CCL
Our products are certified in accordance with the TS EN 61238-1-1, TS EN 61238-1-3 standards and have type test reports from an accredited laboratory.
Al-Cu (bimetal) CCL are 100% domestically manufactured. Our products are certified in accordance with the TS EN 61238-1-1, TS EN 61238-1-3 standards and have type test reports from an accredited
laboratory. With the increase of our production capacity in 2022, our products began to be exported abroad.
Copper-aluminium Bimetal cable lugs make it possible to connect aluminium conductors to copper terminals.
The aluminium and copper used are electrolytic and have a high degree of conductivity.
Using friction welding technology, aluminium and copper are perfectly welded together. This ensures high conductivity, increases efficiency, prevents corrosion and extends the service life of the product.

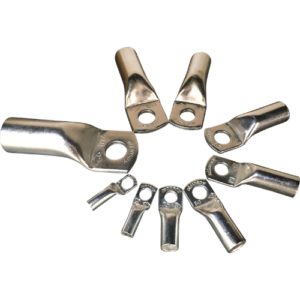

Copper CCL
It is manufactured from copper bars and tinned. Our products are divided into three types: the DIN type, which is manufactured to high standards, the standard type, which complies with the TSE norm, and the ECO type, which is offered more economically.

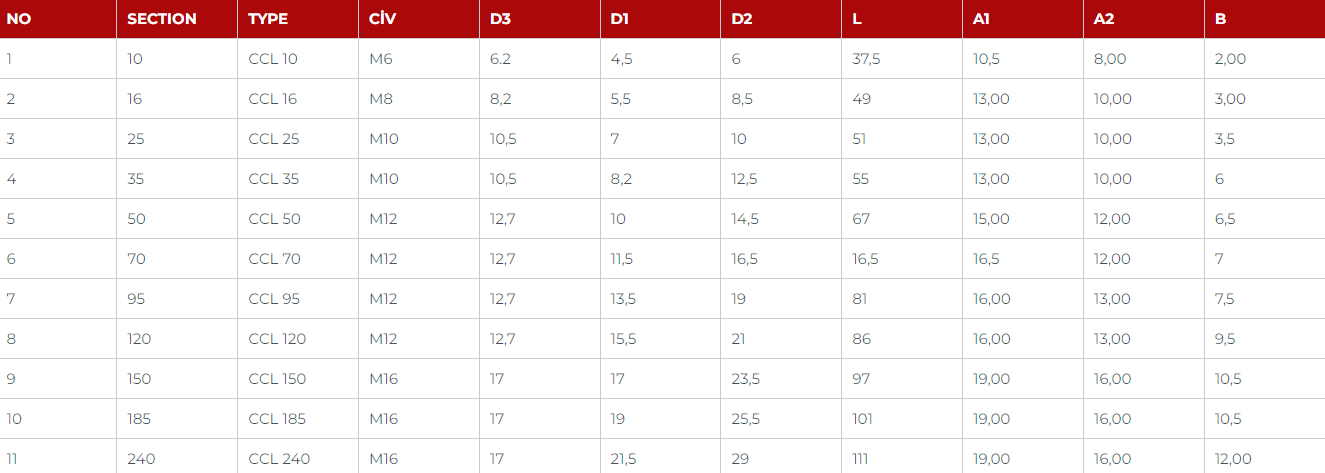

DIN NORM CABLE LUGS TECHNICAL DETAILS

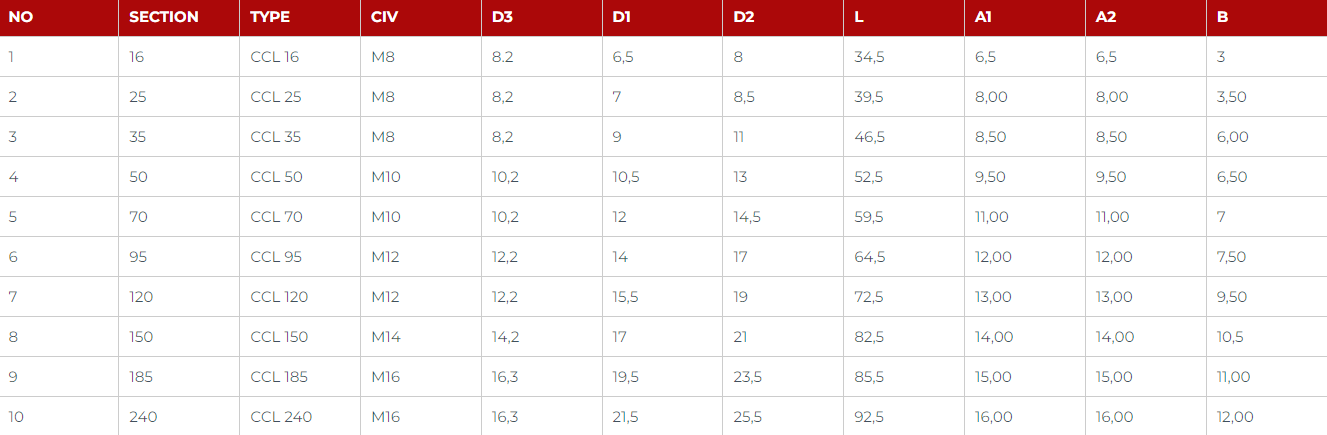

TSE CABLE LUGS TECHNICAL DETAILS

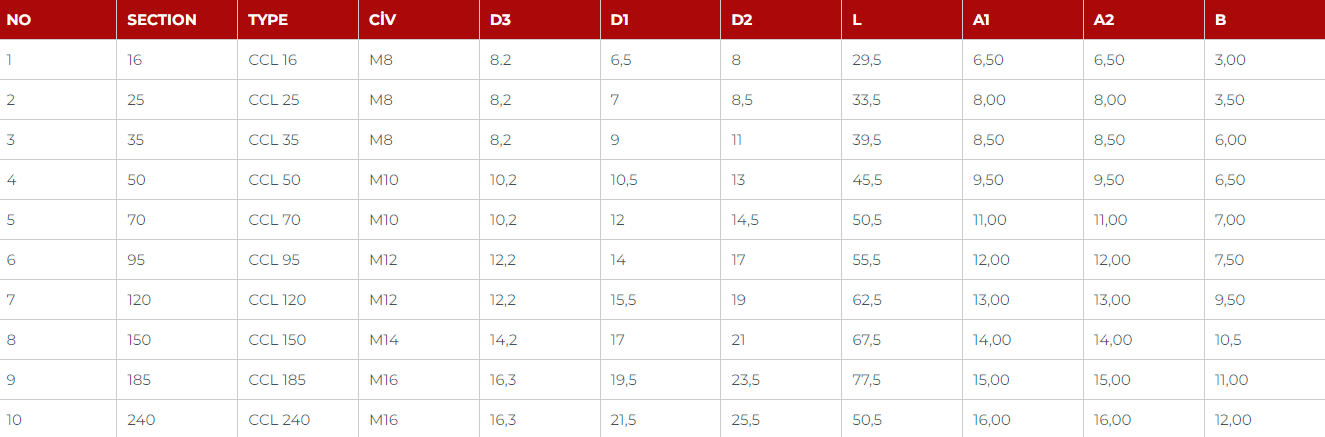

MARKET TYPE CABLE LUGS TECHNICAL DETAILS

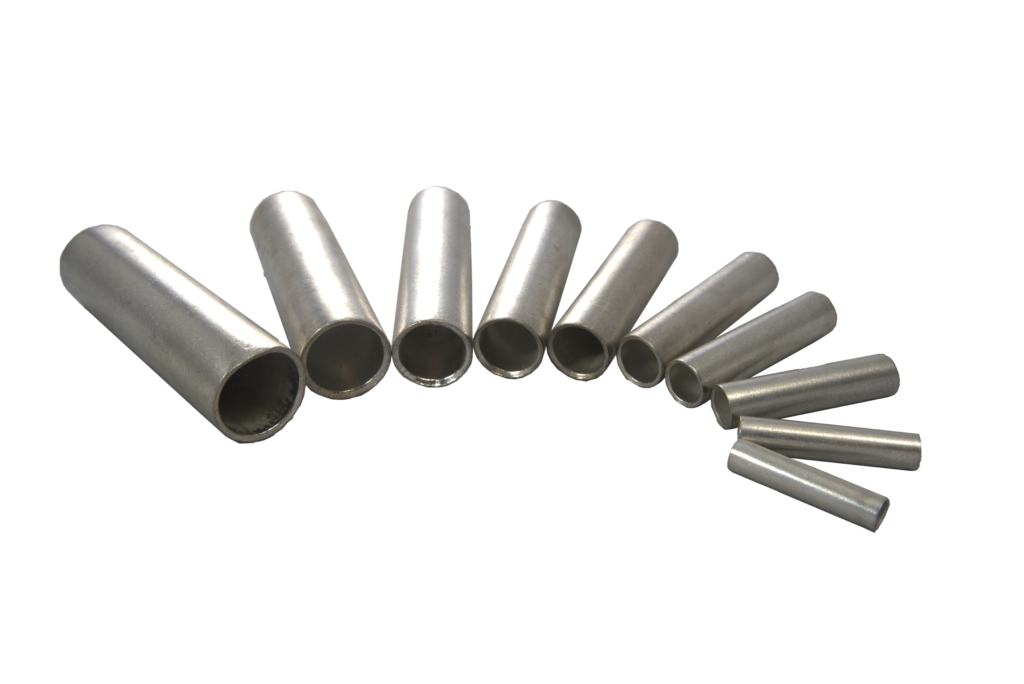

ADDITIONAL CONNECTORS
Additional connectors are fasteners manufactured from high purity electrolytic copper and used for joining low voltage cables. It ensures safe and efficient transmission of electrical energy. It is divided into two as standard type and DIN norm.

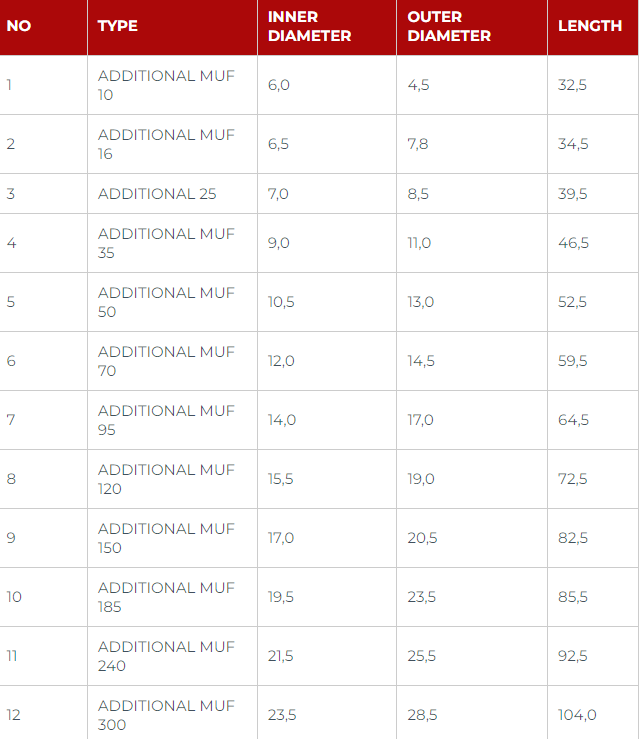

ADDITIONAL CONNECTORS TECHNICAL DETAILS

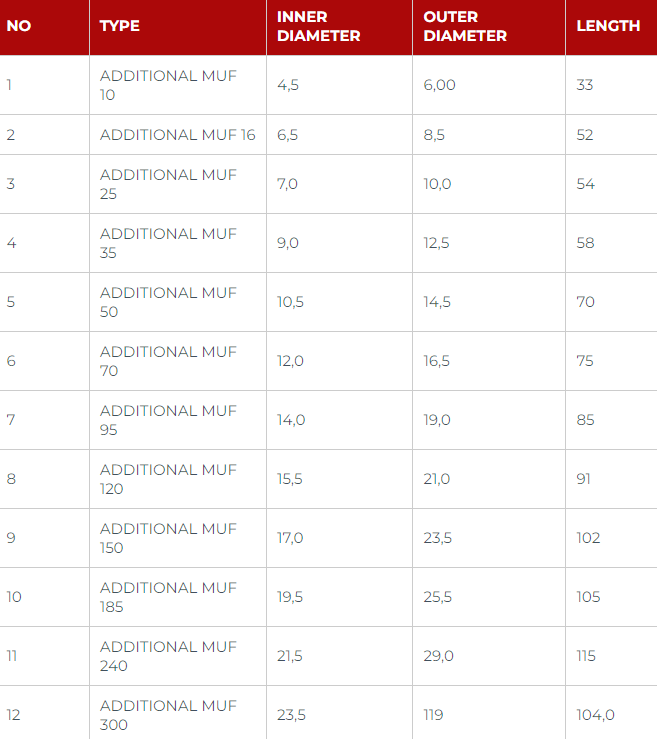

DIN EK CONNECTORS TECHNICAL DETAILS
