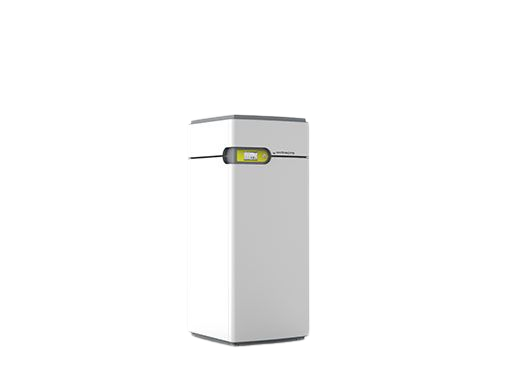

Geothermal Heat Pump
- Heat pump for higher power requirements
- 4.3 inch color touch screen
- Integrated web interface for app control
- Intuitively operated EasiCon control software
- Central power switch
- Sensor system with numerous sensors
- COP counter and display of all operating data
- Hot water heating, external storage tank on site
- Integrated 6kW electric heater
- Chlorine-free R410A refrigerant without ozone depletion
- Variable-speed circulation pumps (efficiency class A)
- Integrated Silenter® vibration damper
- Service-friendly device design
- Rear mounting of the connections
- Device dimensions (W x H x D): 600 x 1470 x 633 mm
Technical Features
- Inverter-controlled power range 2 – 14kW
- Connection set
- Natural cooling (NC) and reverse cooling (RC)
- Starting current damping (400 V)
- Controller extension for:
- A second heating circuit, e.g. for pool heating
- Use of solar thermal energy
- 2 additional mixer circuits
- Low operating costs through COP values of up to 6.9
- Low noise emission of 44 dB (A)
- Power reserves can be used efficiently
-Touch screen with the innovative Easi Con software
- Smartphone control via Easi Con Mobile
- Fully connected to the Internet
- Display of the current COP value
- Housing in high-gloss white
- Optimized surface area of 0.38 m²
