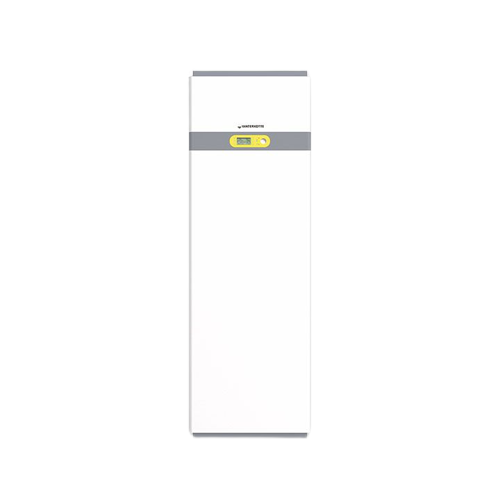

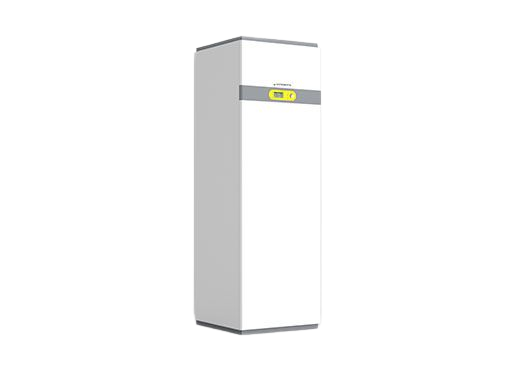

Geothermal Heat Pump
- Compact heat pump Basic
- Monochrome, semi-graphic 8-line display
- Central power switch
- 6 buttons and 3 LED indicators
- Numerous sensors in the refrigerant circuit
- Intuitive BasicPro control software
- Controlled operation of energy-saving pumps
- Hot water tank with a capacity of 170 liters
- Automatic legionella protection circuit
- Chlorine-free R410A refrigerant
- Speed-controlled circulation pumps of efficiency class A
- Integrated 6kW electric heating element
- Integrated Silenter® vibration damper
- Modular design for optimized transport and installation
- Service-friendly unit design
- Connections installed at the rear
- Unit dimensions: (H x W x D) 1743 x 600 x 650 mm
- Reduced space requirement of 0.39 m²
Technical Features
- Connection set
- Starting current damping (400 V)
- Integrated cooling module
- Controller extension for the mixer circuit
- Web Interface Net Base BN Web
- High-quality control unit
- Low operating costs due to COP values of up to 4.7
- Automatic legionella protection circuit
- Integrated Silenter® vibration damper
- Optimized space 600 x 650 mm
- Continuous display of the measured values
